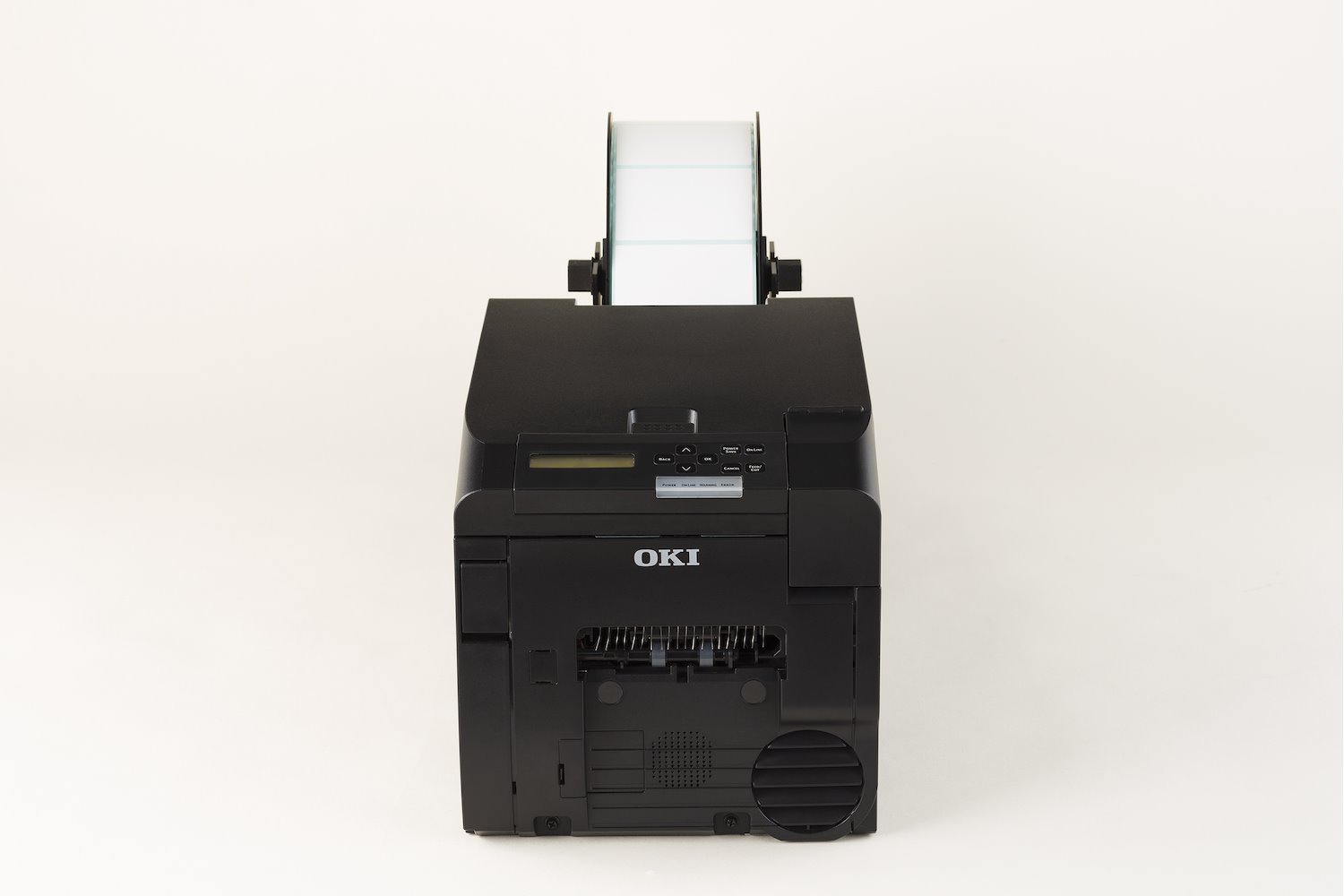

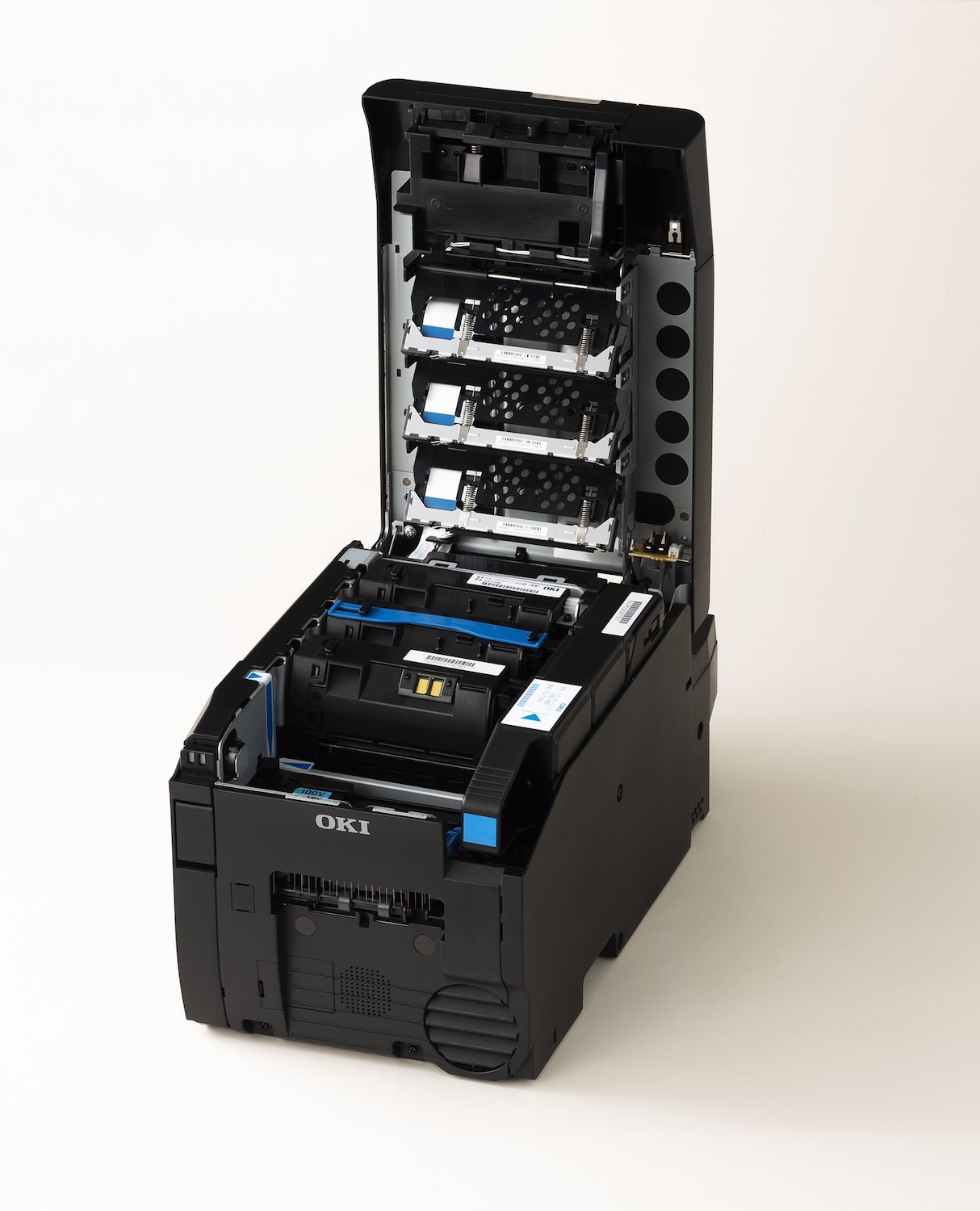

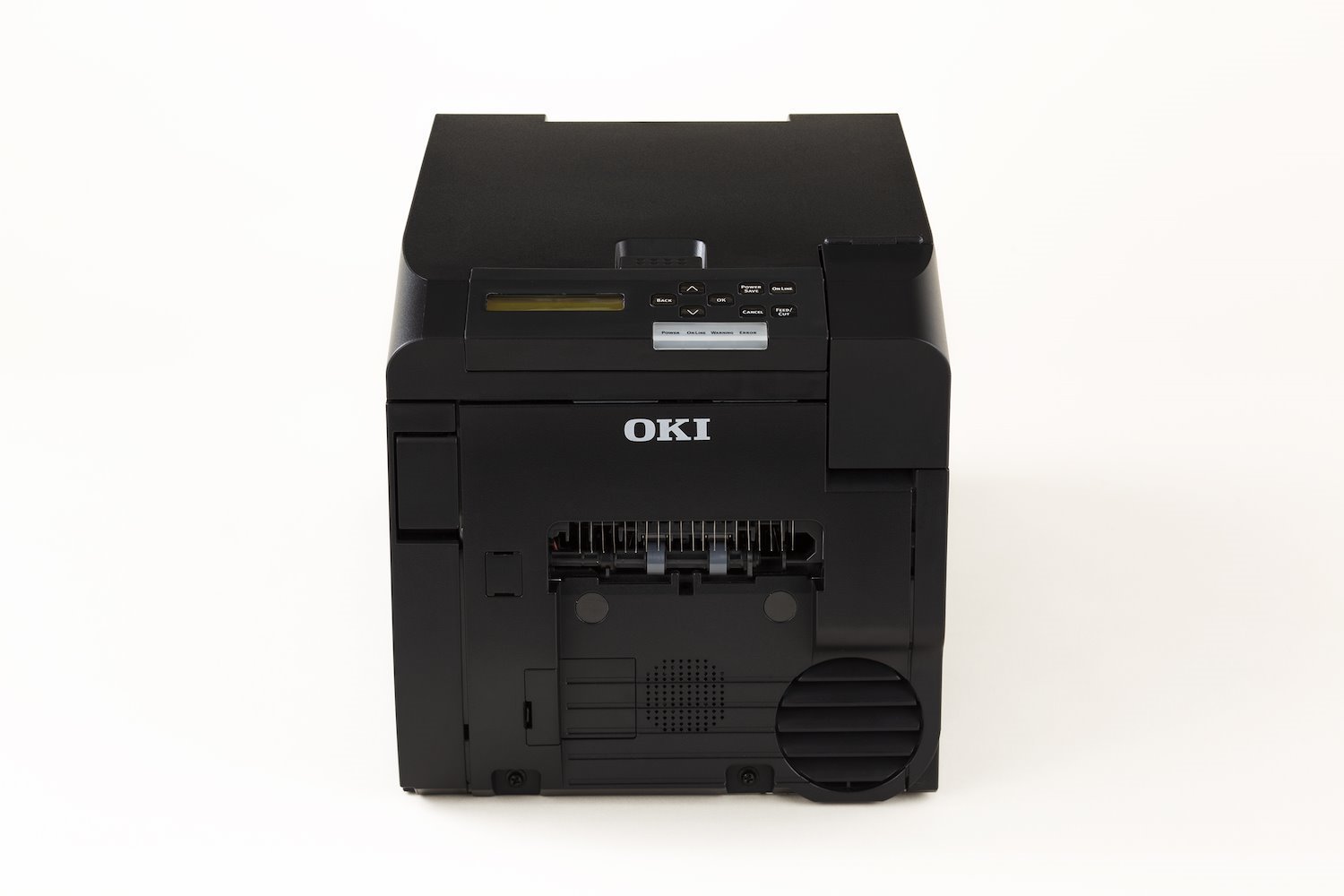

OKI Pro330S 3 Colour LED Label Printer - The Worlds Smallest Toner Based Label Printer
Click on this text to view the PDF Brochure
PRINTER
| Printing Method | Digital 3 LED Full Colour Dry Type (CMY) |
| Printing Speed | Max. 152.4mm (6") / second |
| Time to First Print | 5 seconds; in standby (at Cold Start) |
| Warm Up Time | 23 Seconds (when power is turned on) |
| Resolution | 1200 x 1200 DPI |
| Memory | 512MB |
| Toner Cartridge | Integrated CMY Tri-Colour Toner Cartridge |
INTERFACES & SOFTWARE
| Connection | High-speed USB 2.0, 10Base-T/100Base-TX Ethernet (basic) IEEE802.11 b/ g/ n / a wireless LAN (optional) |
| Printing Language | PCL6(XL), PCL5c |
| Networks & Protocols | TCP/ IPv4, TCP/ IPv6, NetBIOS over TCP, LPR, Port9100, IPP, FTP, HTTP, TELNET, SMTP, POP3, SNMPv1/ v3, DHCP, DHCPv6, DNS, DDNS, UPnP, WINS, Bonjour, SNTP, LLTD, WSD, SSL / TLS, IPSec, IEEE802.1X |
| OS Compatibility | Windows 8, 8.1, 10; Windows Server 2012, 2012 R2, 2016 |
FONT SUPPORT
| Font Support | 4 bitmap fonts, 27 extended fonts |
PRINTER SETUP
| Display | Mono LCD; 16 Characters x2 Line |
| Environment | Operating temperature/humidity: 10°C to 32°C (17°C to 27°C recommended) / 20% to 80% RH (50% to 70% RH recommended) |
| Power Supply | Single phase 220-240VAC, frequency 50/60Hz +/-2% |
| Power Consumption | General: approx. 250W; Max: 650W; Standby: 10W; Power Save: approx. 5W; Sleep Mode: approx. 1W (depending on device settings). |
| Product Size (H x W x D) | 195 × 198 × 380mm |
| Product Weight | Approx. 9.5 kg |
| Printer Life | 120km or 5 years |
PAPER MANAGEMENT
| Width | 25 - 86mm |
| Length | 53 - 551mm |
| Thickness | 0.08 - 0.25mm |
| Media Feeding | Rolled paper, folding, single sheet |
| Mark Type | Black marks (printed side, back), holes, notches, gaps, no marks |
| Cutter | Built-in rotary cutter (cutting length 53-551 mm) |
| Media Sensor | Transmissive sensor, Reflective sensor |
OPTION
| Wireless LAN Module | Wireless LAN Card to connect to wireless networks |
| Presenter Device | A device that allows the presenter device to be stopped at the mouth before the printed paper is completely ejected |

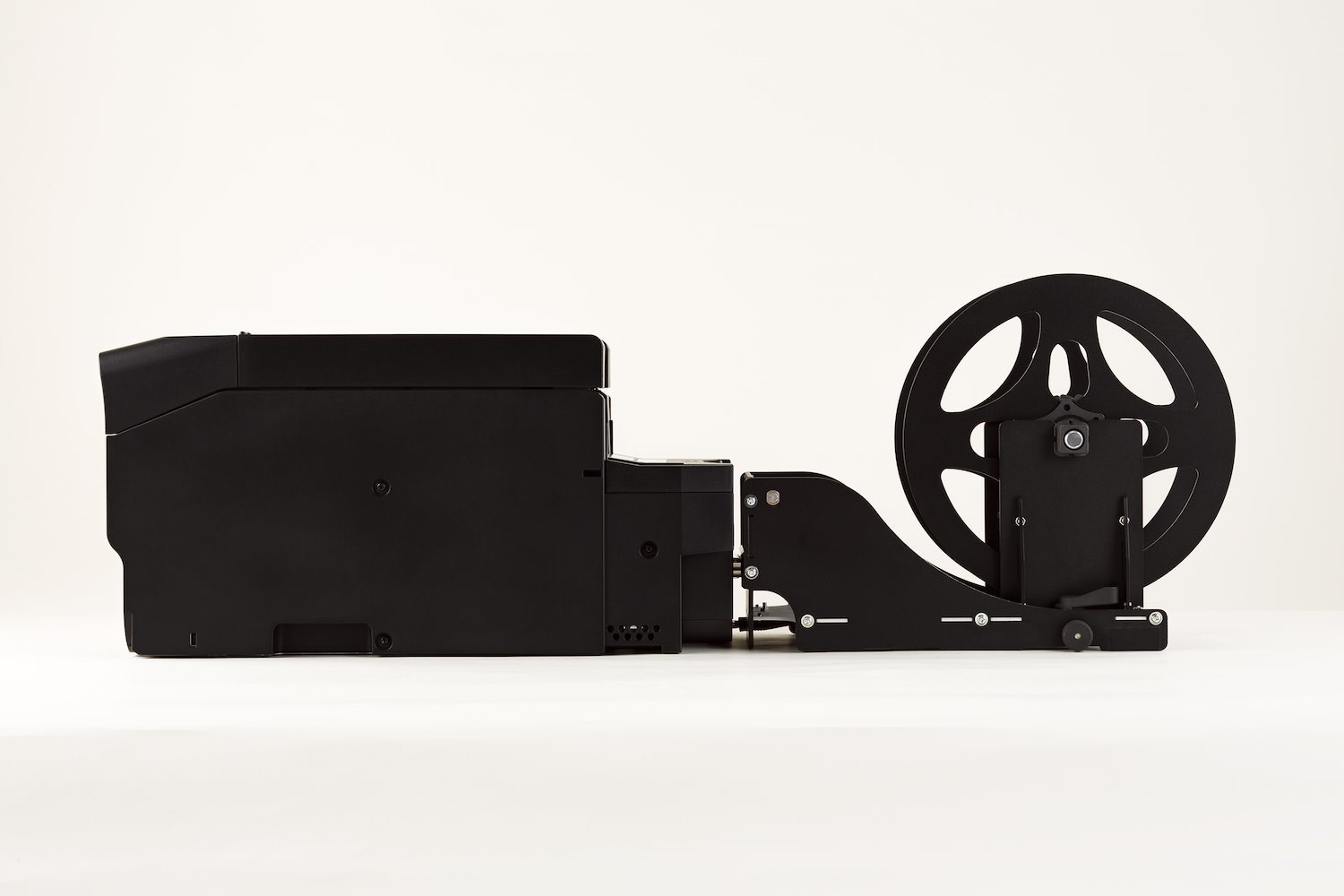

OPTION - ROLL PAPER HOLDER (ROLL PAPER FEEDING GUIDE)
| Media Type | Roll paper, die-cut label roll paper |
| Width | 25 - 86mm |
| Roll Outer Diameter | Max. 203.2mm (8 inches) |
| Core Inner Diameter | 50.8mm (2 inches) or 76.2mm (3 inches) |
| Roll Weight | Max. 2.4 kg |
| Printing Side | Outside the printing surface only (outer rolls) |
| Product Size (H x W x D) | 232 × 175 × 311mm |
CONSUMABLES
| Toner Cartridge * | 3-colour integrated (CMY): approx. 5,000 sheets |
| Image Drum ** | 3-colour one-piece type (CMY) about 25,000 sheets |
| Transfer Belt ** | Approx. 100,000 sheets |
| Fuser Unit ** | Approx. 100,000 sheets |
* For a 25.4mm (1 inch) square black rectangle printed on 216mm x 58mm paper. Reference
values based on our in-house testing.
** For printing only one sheet of 216mm x 58mm paper at a time. Reference values based on our
in-house testing.
Printer shipped with toner for approx. 5,000 sheets*.
